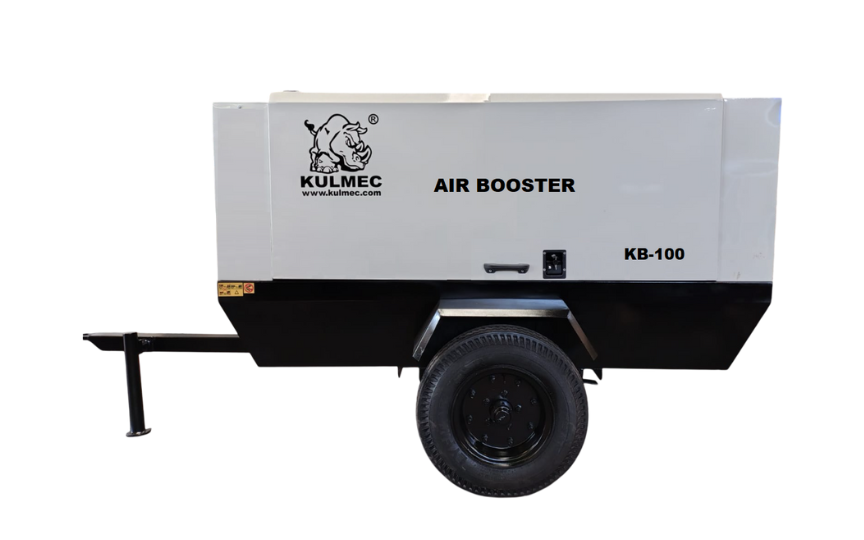

AIR BOOSTER MODEL KB-100
The Kulmec Electric Powered Reciprocating Air Booster Compressor is specially designed to be used with Kulmec Screw Air Compressors or any other compressor.
Kulmec Air Boosters are designed and built with robust frames and easily accessible components. This allows for ease of maintenance and reduced downtime.
Why KULMEC AIR booster model kb-100?
One Machine for Multiple Applications
Power Savings With High Performance
Compact Size With Maximum Flow
Simple Service & Increased Utilization
features
High Quality Components
With years of experience machining quality components, Kulmec designs and builds with high quality pistons, cylinders, valves and other components to exacting specifications. Completed boosters are factory – tested to our rigorous quality standards.
Advance Cylinder Technology
Kulmec Industrial Booster cylinders are bored with precision and finished by a special process that ensures minimum oil consumption and negligible water for great durability.
Effective Cooling
The rugged aftercooler in our two cylinder machines is efficient and maintenance free, achieving low compressed air outlet temperatures.
Manual belt tensioning
A simple slide based V-belt tensioner makes it easy to adjust belt tension and avoid misalignment.
Electric Motor
Our premium TEFC motors have class F insulation and are EISA compliant. 3-phase, 460 or 575 v are standard.
Low Vibration
Our boosters are built on durable steel base frames with anti-vibration mounts for quiet, smooth operation.
Durable High Pressure Pumps
Our high pressure pumps feature lower rotational speeds to promote extended operational life and consistent efficiency.
Low discharge temperatures
A generously proportioned aftercooler keeps the compressed air outlet temperatures comfortably low on air-cooled models
Water-cooled aftercooler
A water-cooled aftercooler is offered on the KB-50 to achieve discharge approach temperatures as low as 11oF.
Forced Lubrication
A forced lubrication system provides increased reliability and service life of the pump. Full-flow filtration extends the oil change interval.
Instrument panel
Our Standard instrument panel contains gauges for air temperature, oil pressure, intel air pressure, inlet are pressure and discharge air pressure.
Specifications
Main Specifications | ||
Reciprocating Air Booster | ||
Max Working Pressure | 298.69 psi | 21 bar |
Booster Specification | Single stage 6 cylinder | |
Air Intake Air Intake Filtration Air Intake Actuator | 3”(76mm) Inlet Dual Filtration, with water separation Pneumatic Operated | |
Air Discharge Plate-Seal After Cooler | With steel hose and plate-seal after cooler Requires min,2 gpm (7.6 lpm) of water | |
Discharge Valve | 2” (55mm) | |
Safety Release Valve | Set at 300 psi | |
Pressure Gauges | Input Pressure Output Pressure Compressor Oil Pressure | |
Electrical System | Star Delta Starter | |
Safety Shutdowns | Low Mine Air Pressure Low Water Pressure Low Compressor Oil Pressure High Discharge Air Temperature | |
Power Pack | 100 HP (75 kw) electric Motor | |
Air Booster Options | |
Towing Package | Single axle | Air filled tires | Towing tongue with replaceable eye |
Fire Extinguisher | Powder type fire extinguisher 4 kg. capacity, filled with WAP powder |
Break | Fittings with hand break |
Dimensions | |||
Units | Length | Width | Height |
mm | 4072 | 2250 | 3620 |
