Surface Top Hammer Drills Model: KD-360 (Electric)
KD-360 is a manually controlled and Model KD-360 R is fully remote controlled, hydraulic and self-propelled drilling unit on a 4-wheel drive carrier and available in chain track carrier type also.
- Typical applications for KD-360 are road construction, In-well Drilling, Tunnel Construction, trenching, bolting, line drilling in dimensional stone quarries & other special drilling applications.
features
Kulmec Screw Compressor

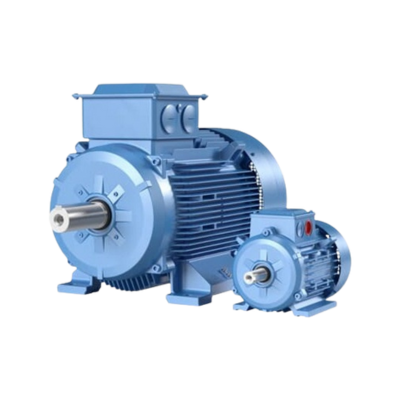

Electric Motor (40 HP)

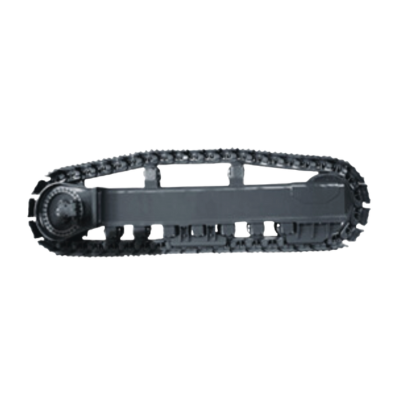

Heavy Track Chain

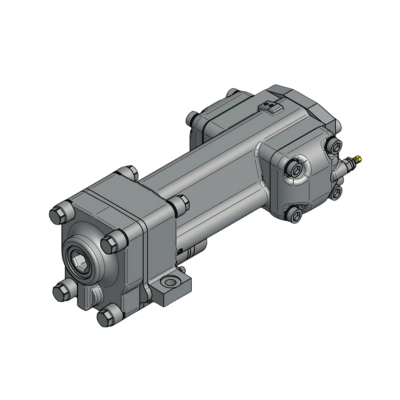

Doofor Drill
Heavy Radiator And Oil Cooler

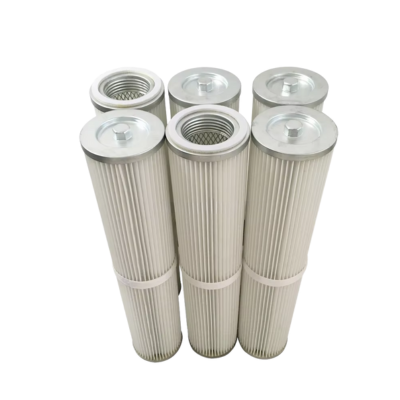

Dust Collector For Dustless Drilling
Specifications
| Model | KD-360 |
| Hole Diameter | 22 – 45 mm (7/8” – 1 3/4”) |
| Rock Tools | 19, 22 or 25 mm (3/4″, 7/8″ or 1″) rods |
| Rock Drill | Doofor |
| Dust Collector | Hydraulic |
| Traveling | 4 Wheel Drive / Crawler Track Chain |
| Electric | 40 HP Motor |
| Weight (without options) | 3240 kg |
| Width | 1850 mm |
| Height | 2450 mm |
| Total length | 4700 mm |
About Kulmec Compressor
Kulmec Compressor is an Indian Company situated in Gandhinagar, Gujarat State, India. Kulmec has been a leading manufacturer of Air Compressors since 1996.
Offering a wide range of reliable and high quality compressor solutions with a commitment to innovation and efficiency. Kulmec Compressors are designed to meet the diverse needs of Industrial, Mining and Road Projects applications. The brands dedication to quality, performance and customer satisfaction has established it as a trusted and respected name in the compressor Industry.
