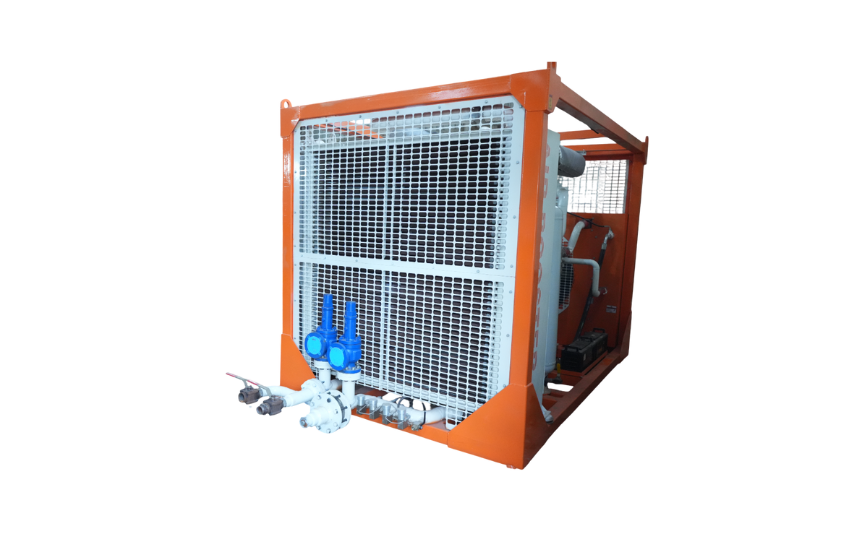

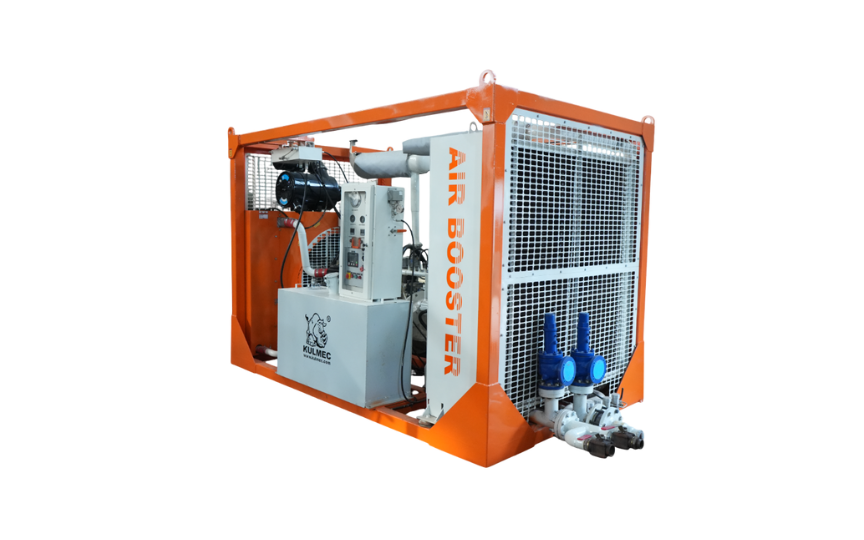

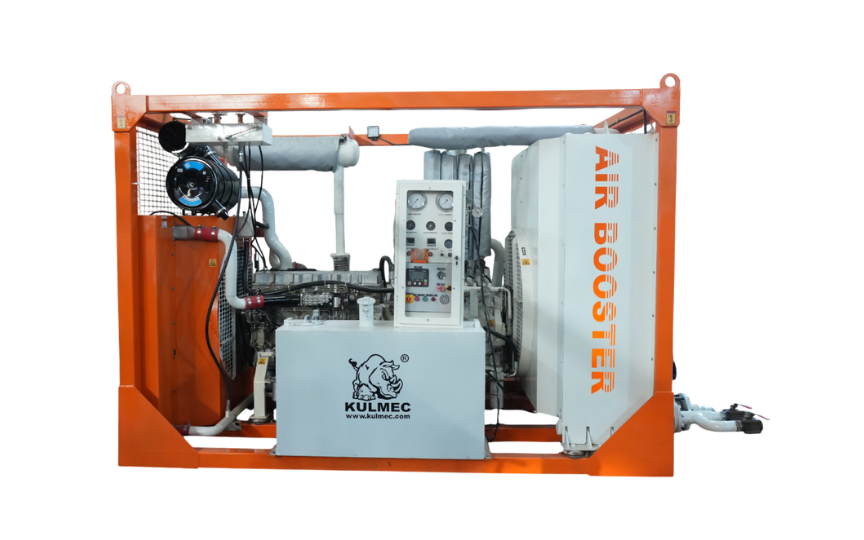

STATIONARY TYPE RECIPROCATING AIR BOOSTER MODEL : KB-280
The Kulmec Electric Powered Reciprocating Air Booster Compressor is specially designed to be used with Kulmec Screw Air Compressors or any other compressor.
Kulmec Air Boosters are designed and built with robust frames and easily accessible components. This allows for ease of maintenance and reduced downtime.
Why KULMEC AIR booster model kb-280?
One Machine for Multiple Applications
Power Savings With High Performance
Compact Size With Maximum Flow
Simple Service & Increased Utilization
features
High Quality Components
With years of experience machining quality components, Kulmec designs and builds with high quality pistons, cylinders, valves and other components to exacting specifications. Completed boosters are factory – tested to our rigorous quality standards.
Advance Cylinder Technology
Kulmec Industrial Booster cylinders are bored with precision and finished by a special process that ensures minimum oil consumption and negligible water for great durability.
Effective Cooling
The rugged aftercooler in our two cylinder machines is efficient and maintenance free, achieving low compressed air outlet temperatures.
Manual belt tensioning
A simple slide based V-belt tensioner makes it easy to adjust belt tension and avoid misalignment.
Electric Motor
Our premium TEFC motors have class F insulation and are EISA compliant. 3-phase, 460 or 575 v are standard.
Low Vibration
Our boosters are built on durable steel base frames with anti-vibration mounts for quiet, smooth operation.
Durable High Pressure Pumps
Our high pressure pumps feature lower rotational speeds to promote extended operational life and consistent efficiency.
Low discharge temperatures
A generously proportioned aftercooler keeps the compressed air outlet temperatures comfortably low on air-cooled models
Water-cooled aftercooler
A water-cooled aftercooler is offered on the KB-50 to achieve discharge approach temperatures as low as 11oF.
Forced Lubrication
A forced lubrication system provides increased reliability and service life of the pump. Full-flow filtration extends the oil change interval.
Instrument panel
Our Standard instrument panel contains gauges for air temperature, oil pressure, intel air pressure, inlet are pressure and discharge air pressure.
Specifications
COMPRESSOR | |
CAPACITY @ 333.5 PSIG (23 BAR) SUCTION @ 700 PSIG DISCHARGE @ 1925 RPM | 2800 CFM |
MAXIMUM DISCHARGE PRESSURE | 1010 PSIG |
OPERATING SPEED | 1200 RPM – 1925 RPM |
MAXIMUM OVERALL COMPRESSION RATIO FROM SUCTION | 2.78:1 |
ENGINE | |
MODEL | ASHOK LEYLAND |
RATING | 280 BHP @ 1900 RPM |
FUEL | DIESEL |
ELECTRICAL SYSTEM | 24 VDC |
BOOSTER MEASUREMENTS AND WEIGHT | |
OVERALL LENGTH | 132 INCH |
OVERALL HEIGHT | 87 INCH |
OVERALL WIDTH | 72 INCH |
DRY WEIGHT | 3107 KG |
WET WEIGHT | 3980 KG |
(WET INCLUDES OIL, OIL, COOLANT, FUEL, BATTERIES) | |
FLUID CAPACITIES | |
PUMPER LUBRICATING OIL | 8.5 LTR |
ENGINE LUBRICATING OIL | 28.3 LTR |
COOLANT SYSTEM | 83.2 LTR |
FUEL TANK | 225 LTR |
SAFETY RELIEF VALVE SETTINGS | |
SUCTION | 450 PSIG |
1ST STAGE | 1200 PSIG |
SET PRESSURES | |
UNLOAD VALVE REGULATOR | 100 PSIG |
BACK PRESSURE REGULATOR | 400 PSIG |
DISCAHRE PRESSURE SWITCH | 1000 PSIG MAXIMUM, OR DESIRED UNLOAD PRESSURE |
COOLING SYSTEM | |
PRE COOLER AMBIENT | + 8O C |
AFTER COOLER AMBIENT | + 25O C |
METAL | COPPER TUBE |
SHUT DOWN SET POINTS | |
SUCTION HIGH GAS TEMPERATURE | 160°F |
18 STAGE HIGH GAS TEMPERATURE | 400°F |
LOW PUMPER OIL PRESSURE | 20 PSIG |
ENGINE OVERSPEED | 2100 RPM |
BATTERIES | |
SIZE | 1231 MF |
CCA @ 32°F | 1260 |
CCA @ O°F | 1100 |
BATTERY VOLTAGE | 12VDC |
CIRCUIT | SERIES |
CIRCUIT VOLTAGE | 24 VDC |
QUANTITY | 2 |
