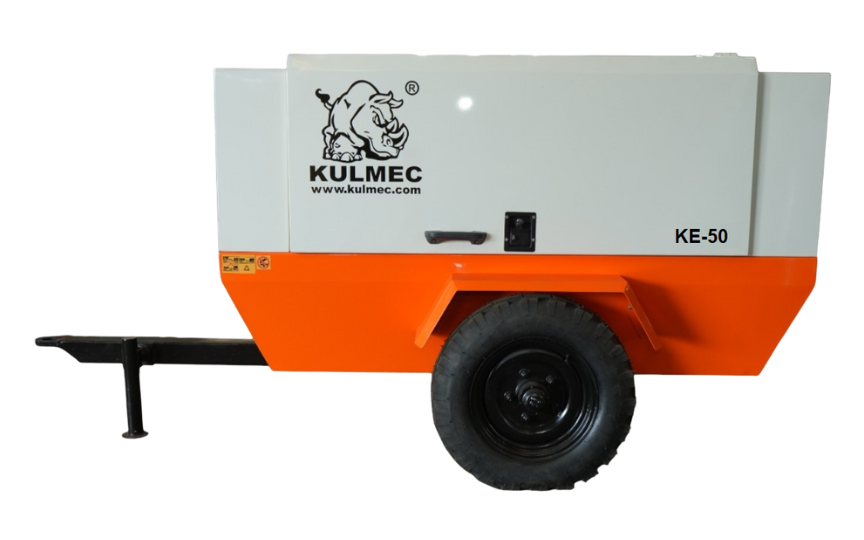

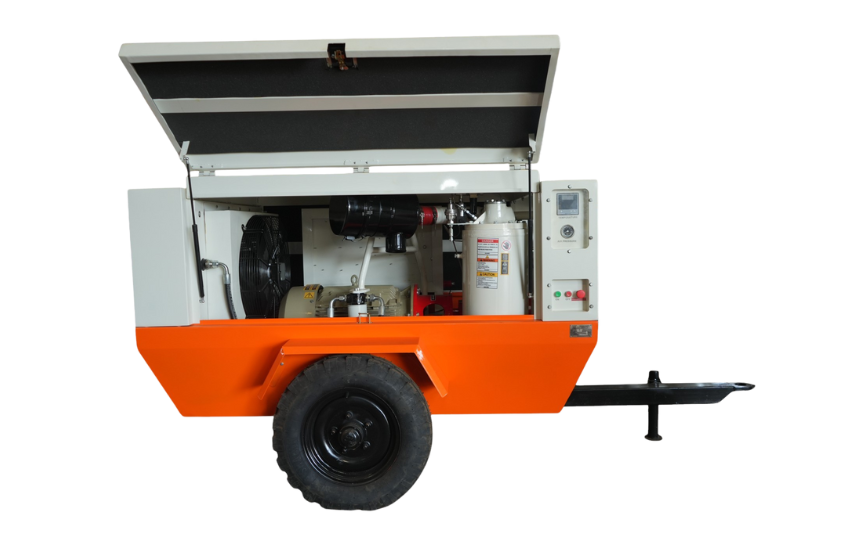

Electric Portable Air Compressor Model: KE-50
- Profile design derived from German Technology
- Siemens, ABB standard Panel
- High efficiency electric motor
- Next generation screw profile
- Dual pressure controller
- Heavy oil cooler to make compressor cool and smooth in high ambient temperature
- No complicated design, simple and can do maintenance any were
Why KULMEC AIR booster model ke-50?
One Machine for Multiple Applications
Power Savings With High Performance
Compact Size With Maximum Flow
Simple Service & Increased Utilization
features
ABB, Siemens easy maintainable panel will all safety features
Heavy Oil Coolers Designed for High ambient temperature
The Latest Generation of screw Compressor Rotors
High Service Factor Motor
Specifications
MODEL | KE-50 | |||
CFM | 258 | 250 | 216 | 180 |
PSI | 102 | 125 | 150 | 188 |
OPERATING PRESSURE | 7 | 8.5 | 10 | 13 |
MAX. ENVIRONMENT TEMPERATURE | 50 | |||
COMPRESSOR OIL CAPACITY | 20 | |||
OUTLET VALVE SIZE | 1×3, 1.25”x1 | |||
MOTOR KW | 37 | |||
MOTOR HP | 50 | |||
MOTOR ENCLOSURE | IP55/F | |||
LENGTH (MM) TROLLEY MOUNTED | 3530 | |||
LENGTH STATIONARY | 2413 | |||
WIDTH (MM) TROLLEY MOUNTED | 1590 | |||
WIDTH STATIONARY | 1194 | |||
HEIGHT (MM) TROLLEY MOUNTED | 1520 | |||
HEIGHT STATIONARY | 1190 | |||
DRY WEIGHT TROLLEY MUNTED | 1250 | |||
DRY WEIGHT STATIONARY | 1160 | |||
About Kulmec Compressor
Kulmec Compressor is an Indian Company situated in Gandhinagar, Gujarat State, India. Kulmec has been a leading manufacturer of Air Compressors since 1996.
Offering a wide range of reliable and high quality compressor solutions with a commitment to innovation and efficiency. Kulmec Compressors are designed to meet the diverse needs of Industrial, Mining and Road Projects applications. The brands dedication to quality, performance and customer satisfaction has established it as a trusted and respected name in the compressor Industry.
