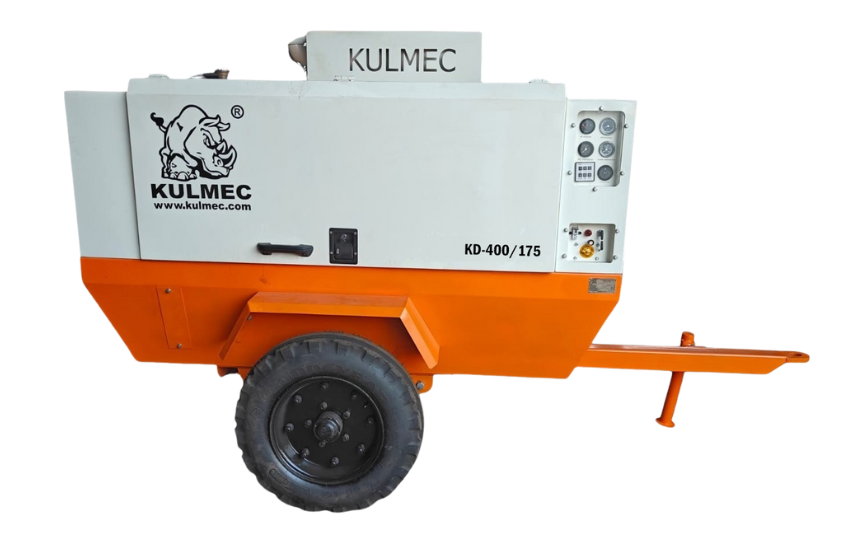

ENGINE DRIVEN SCREW AIR COMPRESSOR MODEL: KD-400/175
- Screw rotors are designed & manufactured in German technology.
- Compressor is powered by Cummins/Ashok Leyland.
- Efficient cooling system for water, air and oil which ensure the reliable operation of diesel engine and its suitable for high temperature working environment.
- Single point lifting, easy to transfer and installation on site.
Why KULMEC ENGINE DRIVEN SCREW AIR COMPRESSOR MODEL: KD-400/175?
One Machine for Multiple Applications
Both Efficiency And Autonomy
Compact Size With Maximum Flow
Simple Service & Increased Utilization
features
Heavy Oil Coolers
Easy to use will all safety features
Dual Air Filters
New Generation screw Rotors
Cummins/Ashok Leyland Engine
Specifications
| MODEL | KD-400/175 | |
| CFM | 400 | |
| OPERATING PRESSURE | 12 | |
| PSI | 175 | |
| TANK CAPACITY (OIL) LTR | 20 | |
| TANK CAPACITY (FUEL) LTR | 80 | |
| FUEL TYPE | DIESEL | |
| ENGINE MAKE | CUMMINS/ASHOK LEYLAND | |
| ENGINE MODEL | 6BTA/H4CTI | |
| NUMBER OF CYLINDERS | 6/4 | |
| STARTING VOLTAGE | 24 | |
| LENGTH (MM) TROLLEY MOUNTED | 3920/3690 | |
| LENGTH STATIONARY | 2700/2390 | |
| WIDTH (MM) TROLLEY MOUNTED | 2120/1510 | |
| WIDTH STATIONARY | 2700/1200 | |
| HEIGHT (MM) TROLLEY MOUNTED | 2100/1945 | |
| HEIGHT STATIONARY | 1630/1400 | |
| DRY WEIGHT TROLLEY MOUNTED | 1840/1540 | |
| DRY WEIGHT STATIONARY | 1740/1450 | |
About Kulmec Compressor
Kulmec Compressor is an Indian Company situated in Gandhinagar, Gujarat State, India. Kulmec has been a leading manufacturer of Air Compressors since 1996.
Offering a wide range of reliable and high quality compressor solutions with a commitment to innovation and efficiency. Kulmec Compressors are designed to meet the diverse needs of Industrial, Mining and Road Projects applications. The brands dedication to quality, performance and customer satisfaction has established it as a trusted and respected name in the compressor Industry.
