Portable Abrasive Sand Blasting Machine
This is an ideal machine for medium to larger projects such as bridge refurbishment work where mobility and high production rates are important.
Fabricated from heavy gauge steel this blast pot is of the highest quality available.
features
- Heavy fabricated structure built with only graded best quality material
- Simple design for ease of operation
- Hydrotested at our premises for ensured safety
- Hydraulic hose used for flexible design and easy changeability
- Tested and certified pressure gauges and safety valves
- Concave top for rapid filling of pot which is sealed automatically by heavy duty pop-up valve
- Conical bottom ensures all media flows to metering valve
- Inspection hole -Allowing easy access for inspection and maintenance
- Simple and easily changeable abrasive metering valve
- Compact remote control system and silencer – This gives the operator full control at the end of the blast hose, giving higher efficiency of abrasive, increased performance and operator safety
- Moisture/Water Separator -Assists in removing the water/moisture from the incoming compressed air supply to the blast pot, thus helping to ensure that the abrasive does not become damp
- Quick claw couplings fitted to ensure quick set-up
- Main air isolation valve for additional safety
- Heavy duty wheels for increased mobility
- Powder coated for long lasting durability and rust resistance
- CE Approved
- Two point lifting arrangement

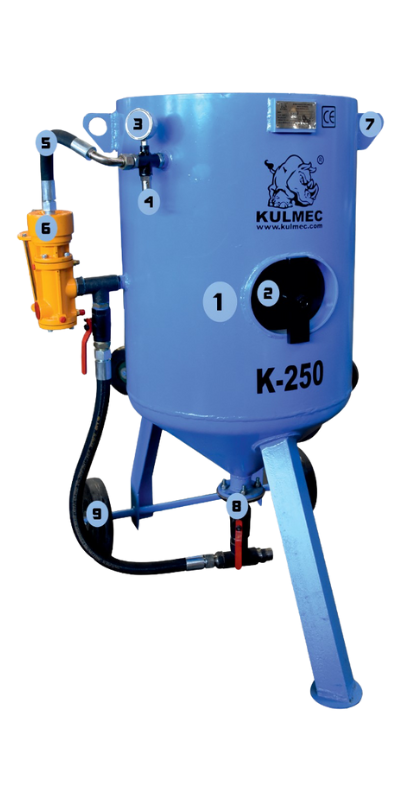

Portable Abrasive Blasting series
- A heavy-duty blaster tank is designed for withstanding rough use and delivering smooth operation.
- A manhole is designed for better accessibility inside the tank.
- A certified pressure gauge
- Certified safety valves
- Use of rubber hose instead of metal hose for better flexibility and easy changeability
- Remote control valves with dead-man handles
- lifting point
- easily changeable abrasive metering valve
- Heavy wheels with rubberized coating
Specifications
Portable Blaster Model | |||||
| K-50 | K-50 | K-250 | K-400 | Jumbo 4000 |
Volume | 38L | 96L | 224L | 406L | 3000L |
Abrasive capacity | 50kg | 100kg | 250kg | 500kg | 4000kg |
Metal sheet thickness | 6mm | 6mm | 6mm | 6mm & 8mm | 12mm |
Tank diameter | 254mm | 406mm | 609mm | 762mm | 1828mm |
Height | 635mm | 762mm | 1041mm | 1168mm | 1828mm |
Weight | 42kg | 90kg | 180kg | 260kg | 2100kg |
No of nozzles compatible | 1 | 1 | 1 | 1 | Upto 4 |
